Municipal Pumps
MT Series Pumps

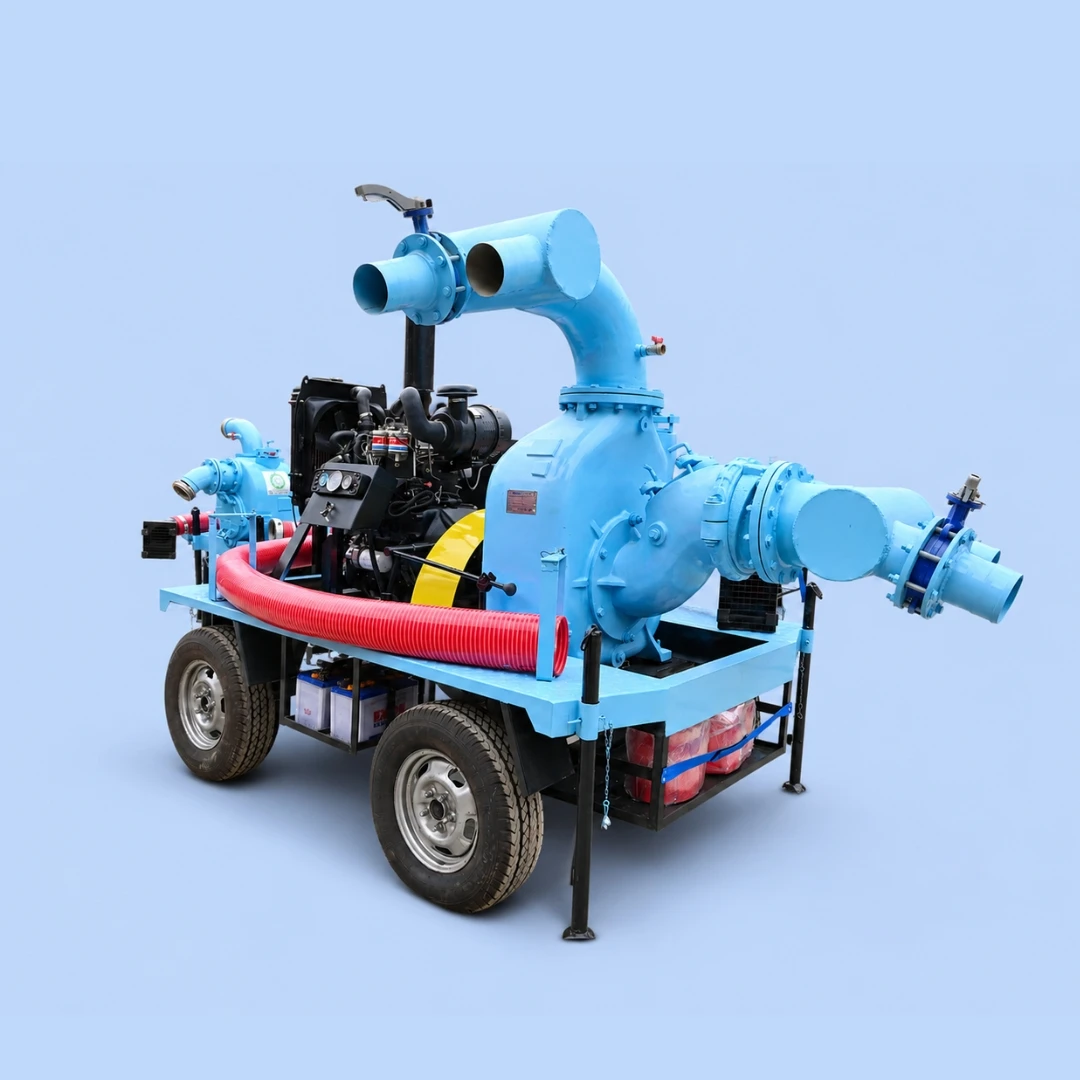

MERAJ manufactures MT Series pumps for municipal water management and dewatering. These self-priming centrifugal pumps handle diverse fluids and slurries in challenging conditions. They offer heavy-duty solid-handling capabilities and reliable re-prime functions. The economical design ensures easy installation and maintenance.
Municipal Pumping Excellence
Municipal Performance
The MT Series handles the most challenging municipal environments. These pumps manage diverse fluids where specifications remain uncertain. They provide an optimal solution for city water management.
Solid Handling
We engineer these pumps to resist clogging. They feature heavy-duty solid-handling capabilities. This ensures efficient dewatering during demanding operations.
Reliable Operation
Municipal work requires continuous reliability. The self-priming centrifugal design maintains performance in tough conditions. They include built-in re-prime functionality to keep systems running.
Easy Maintenance
We design the MT Series for economical operation. Operators can install and maintain these units easily. Innovative design features reduce downtime and save effort.
Features
Self-Priming Design
Features self-priming centrifugal technology with re-prime functionality.
Diverse Applications
Handles water, slurries, and diverse fluids in changing environments.
Heavy-Duty Construction
Built as a heavy-duty, non-clogging pump for continuous municipal work.
High Flow Capacity
Reaches a maximum flow rate of 4000 GPM.
Powerful Delivery
Generates a maximum head of up to 133 feet.
MT Series - Technical Data
| Suction | Discharge | Max. Head (Ft.) | Max. Flow (GPM) | Max. RPM | Max. Power (HP) | Net Weight (lb/kg) | Repriming Lift | Max Solid Sphere |
|---|---|---|---|---|---|---|---|---|
| 2" | 2" | 103 | 225 | 2000 | 10 | 203 lbs / 92 kg | 24 ft | 1.5" |
| 3" | 3" | 112 | 450 | 2000 | 15 | 220 lbs / 99 kg | 25 ft | 2.5" |
| 4" | 4" | 119 | 730 | 1750 | 15 | 310 lbs / 141 kg | 25 ft | 3" |
| 6" | 6" | 111 | 1500 | 1550 | 50 | 935 lbs / 425 kg | 25 ft | 3" |
| 8" | 8" | 109 | 2620 | 1450 | 60 | 1705 lbs / 775 kg | 23 ft | 3" |
| 10" | 10" | 133 | 3200 | 1450 | 100 | 1750 lbs / 794 kg | 22 ft | 3" |
| 12" | 10" | 120 | 4000 | 1450 | 125 | 2200 lbs / 998 kg | 18" | 3" |
