Hook Lift Work Truck – Town-Series

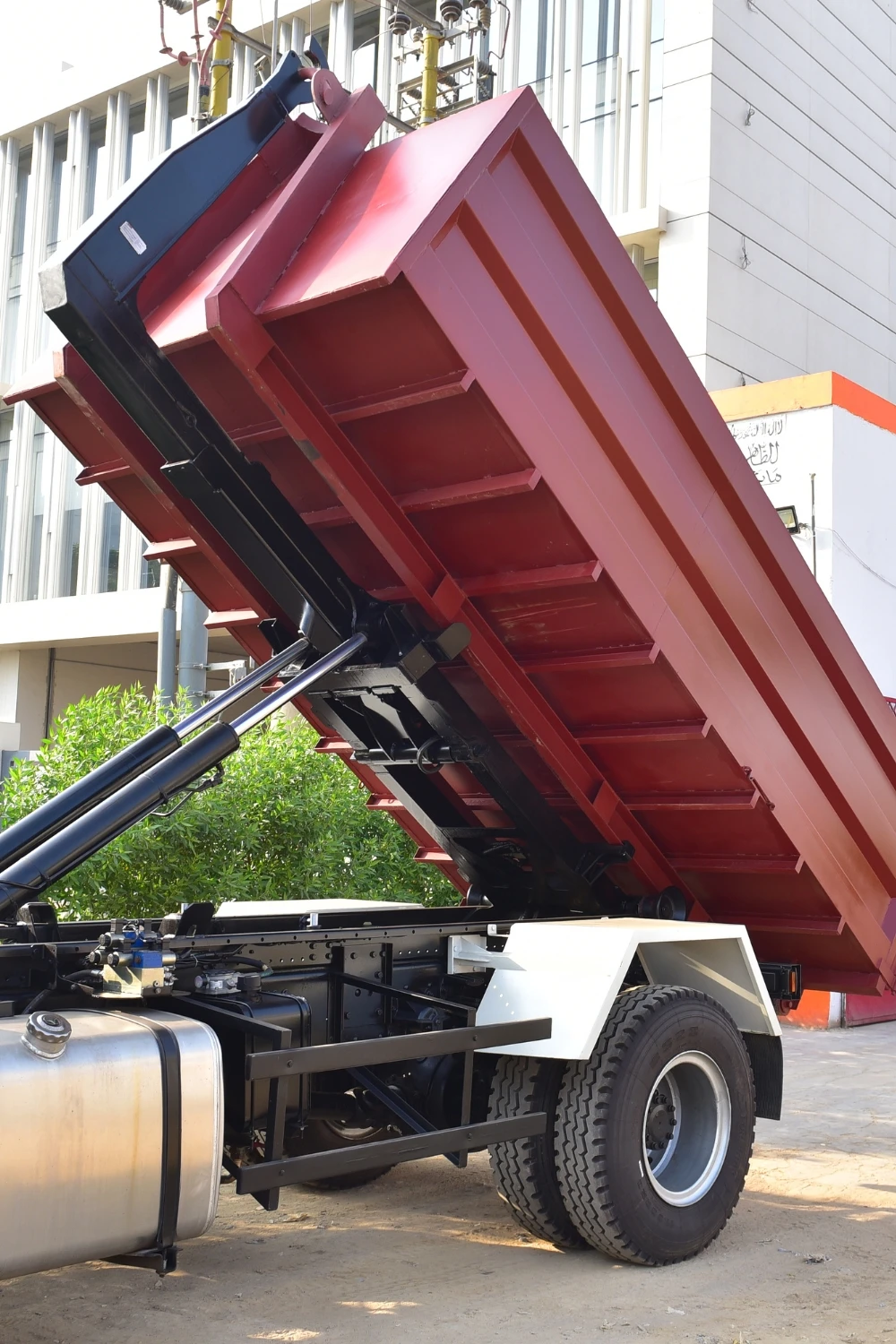

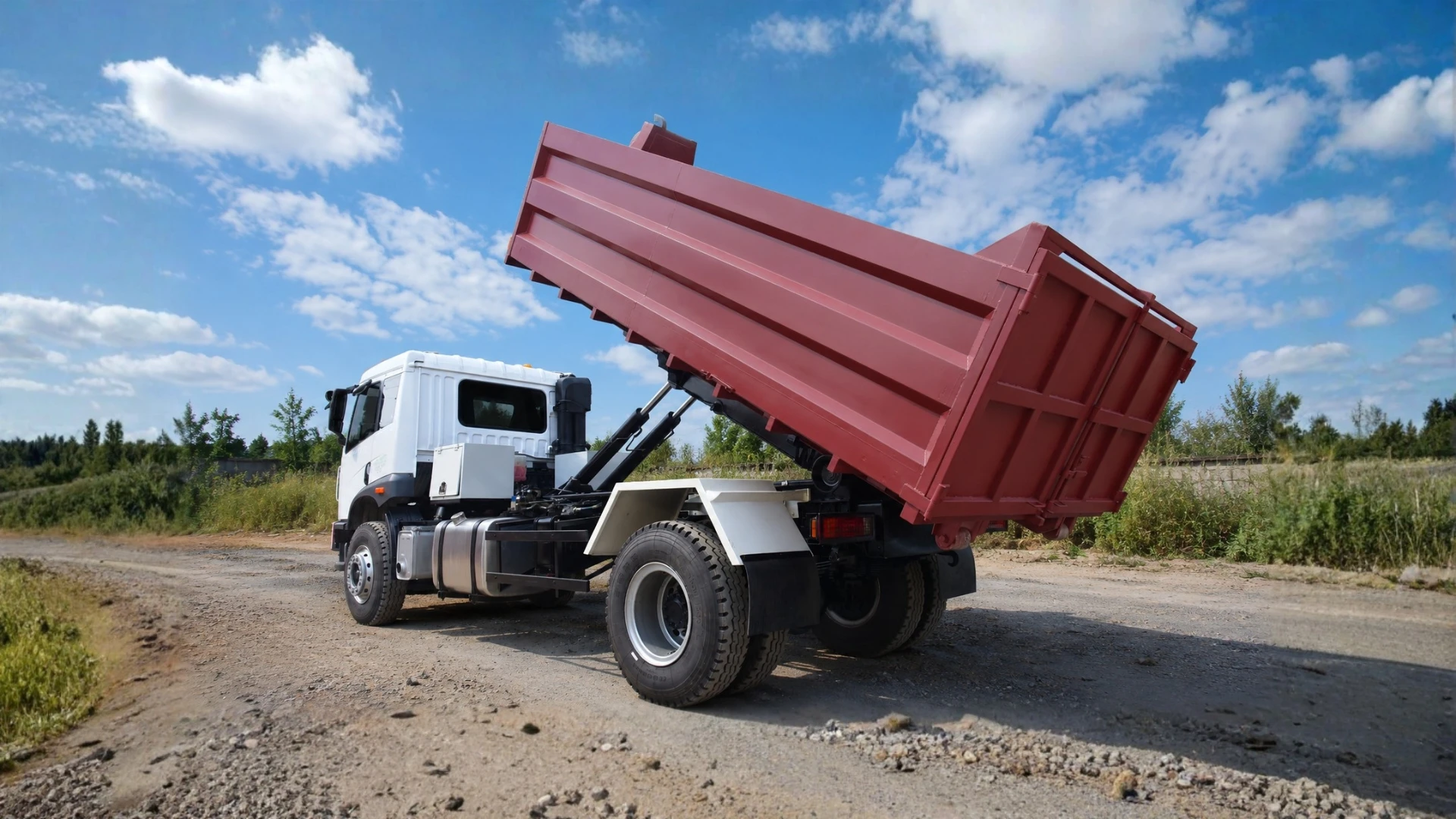

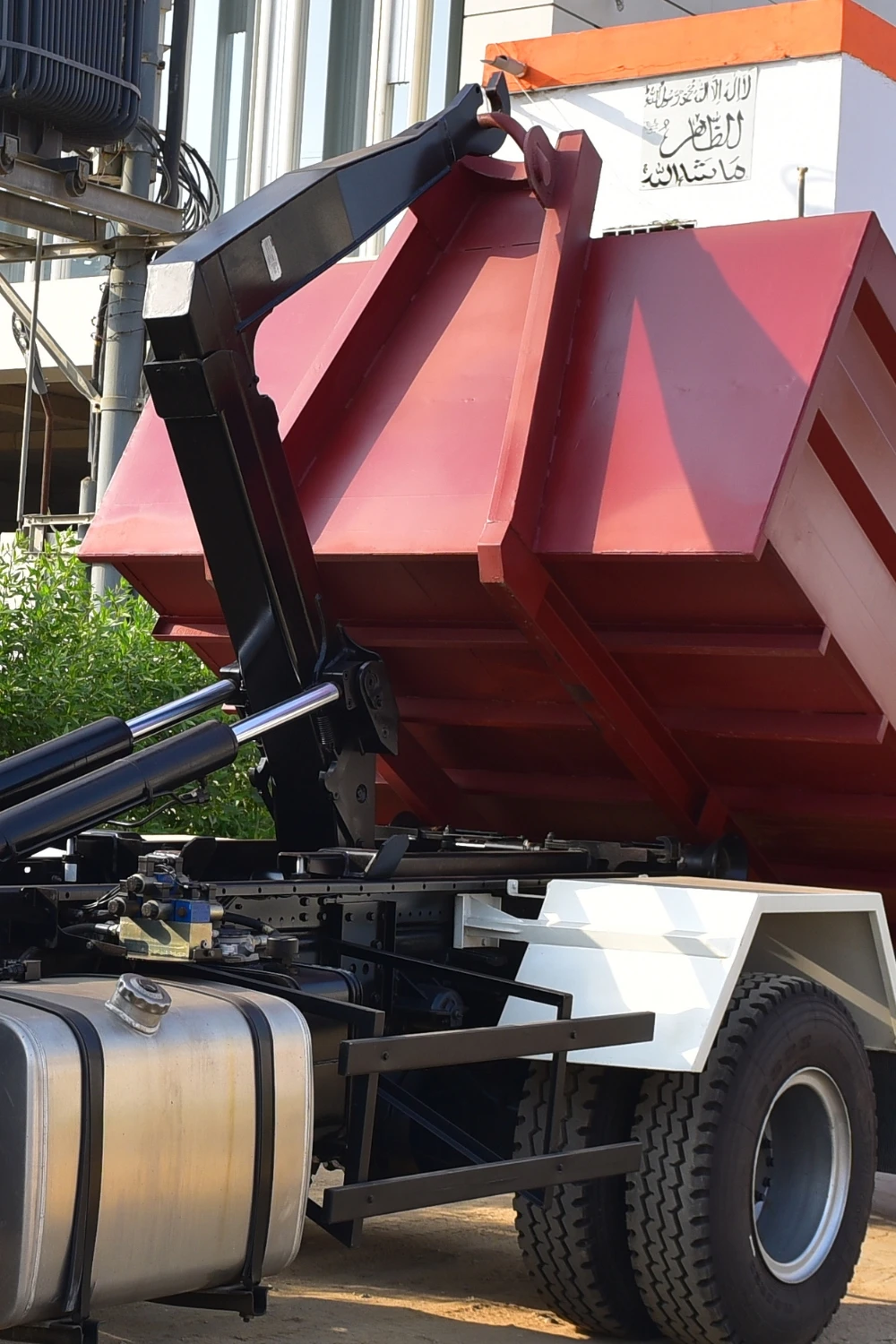

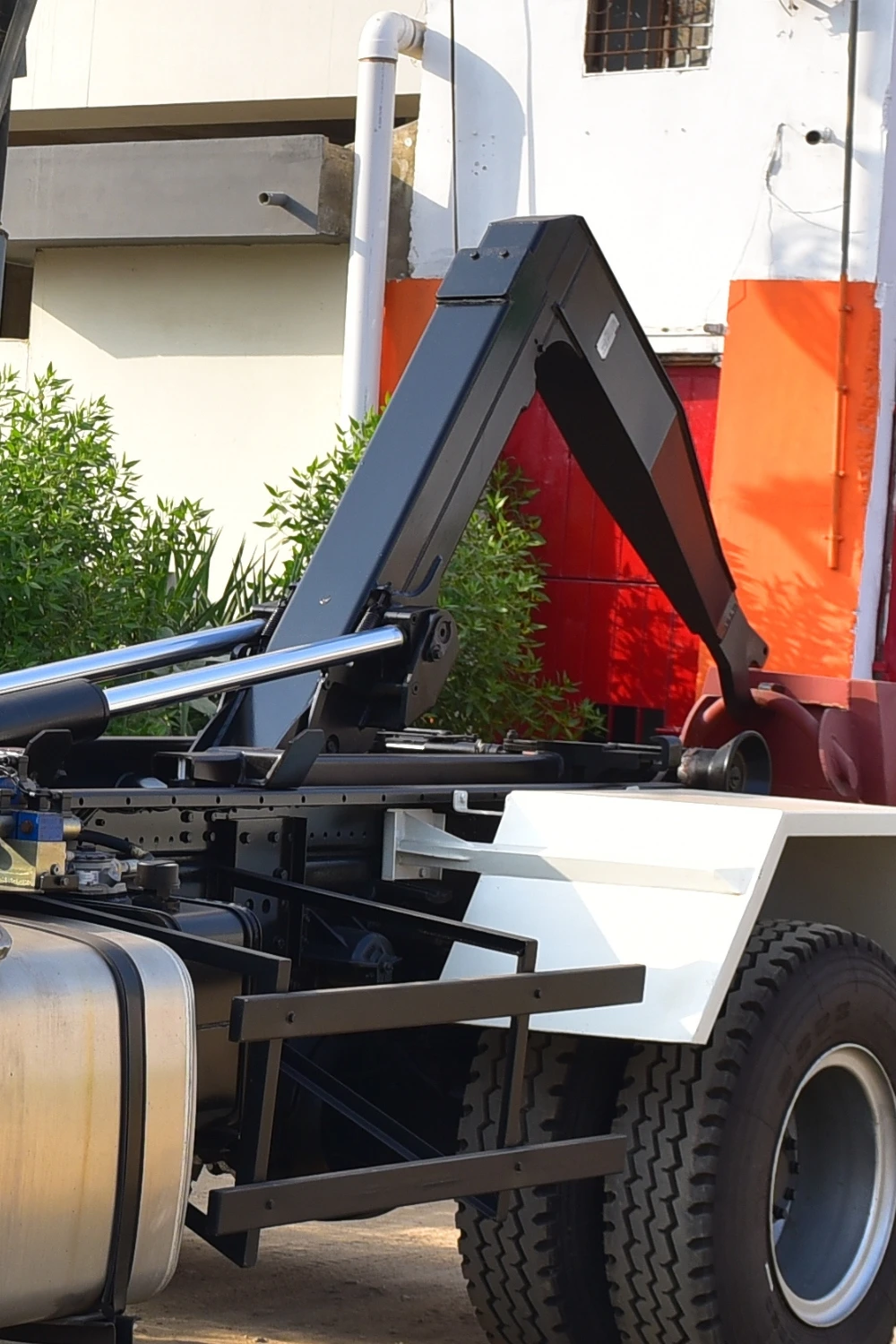

The Town-Series Hooklift transforms a single truck chassis into a multi-functional fleet. This arm roll system uses a sliding jib to load, unload, and dump different body lengths. The design utilizes a full-length dump frame and positioned rollers rather than traditional saddles with wear pads. The operator manages the hydraulic valve through in-cab controls while monitoring the load through the rear window. Hydraulic counterbalance valves prevent cylinder collapse.
The Heavy Duty variant maximizes payload on chassis up to 30 tons GVW. It lifts up to 15,000 kg. The full-length dump frame and rollers support heavy industrial container transport and construction debris removal.
Technical Highlights
Lifting Range
System capacities range from 3,000 kg to 15,000 kg.
Chassis Support
Compatible with gross vehicle weights from 5 tons to 30 tons.
Secure Operations
Features a hydraulic locking mechanism for secure dumping and adjustable hook lengths.
Low Maintenance
We build every model with permanently lubricated and grease-able bushings.
