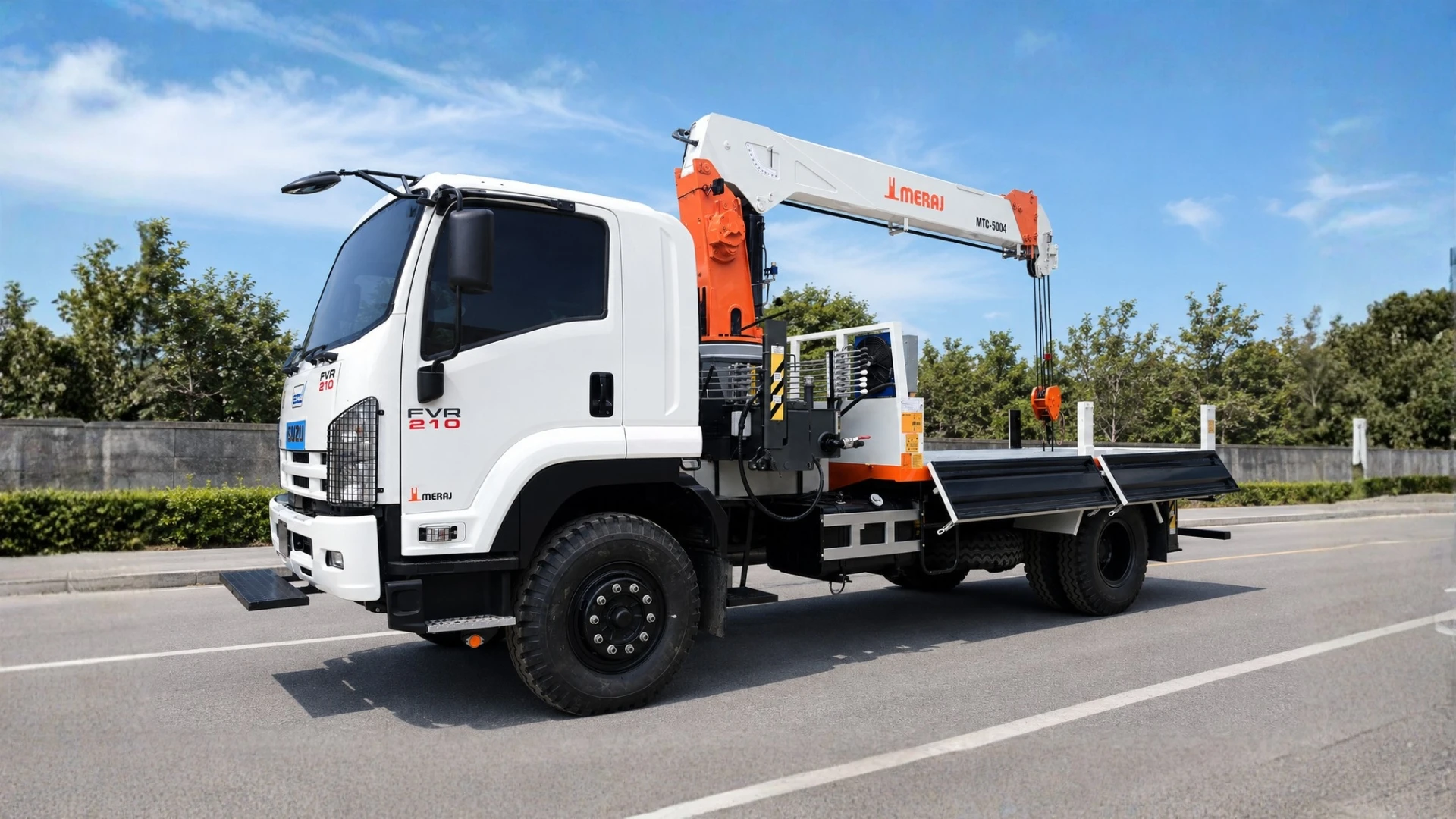

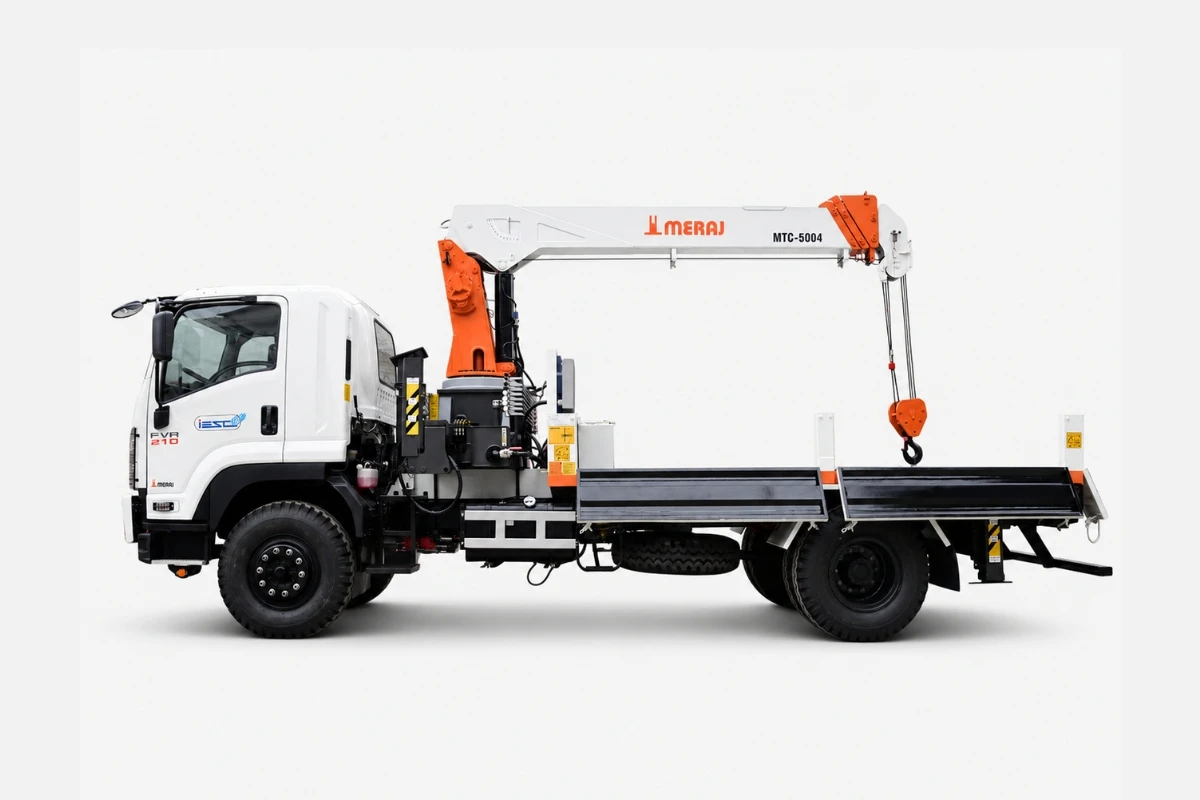

Meraj Telescopic Cranes - MTC

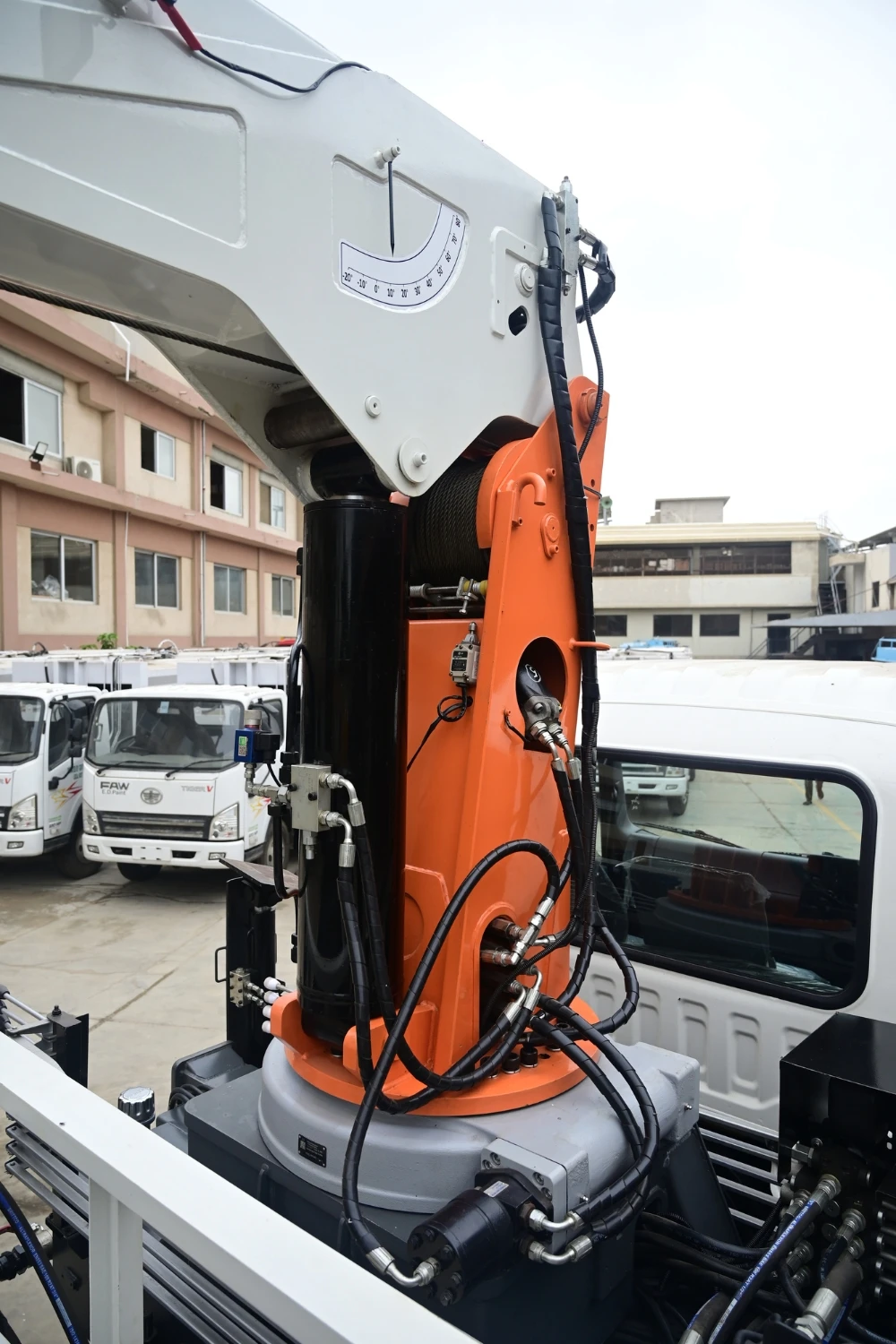

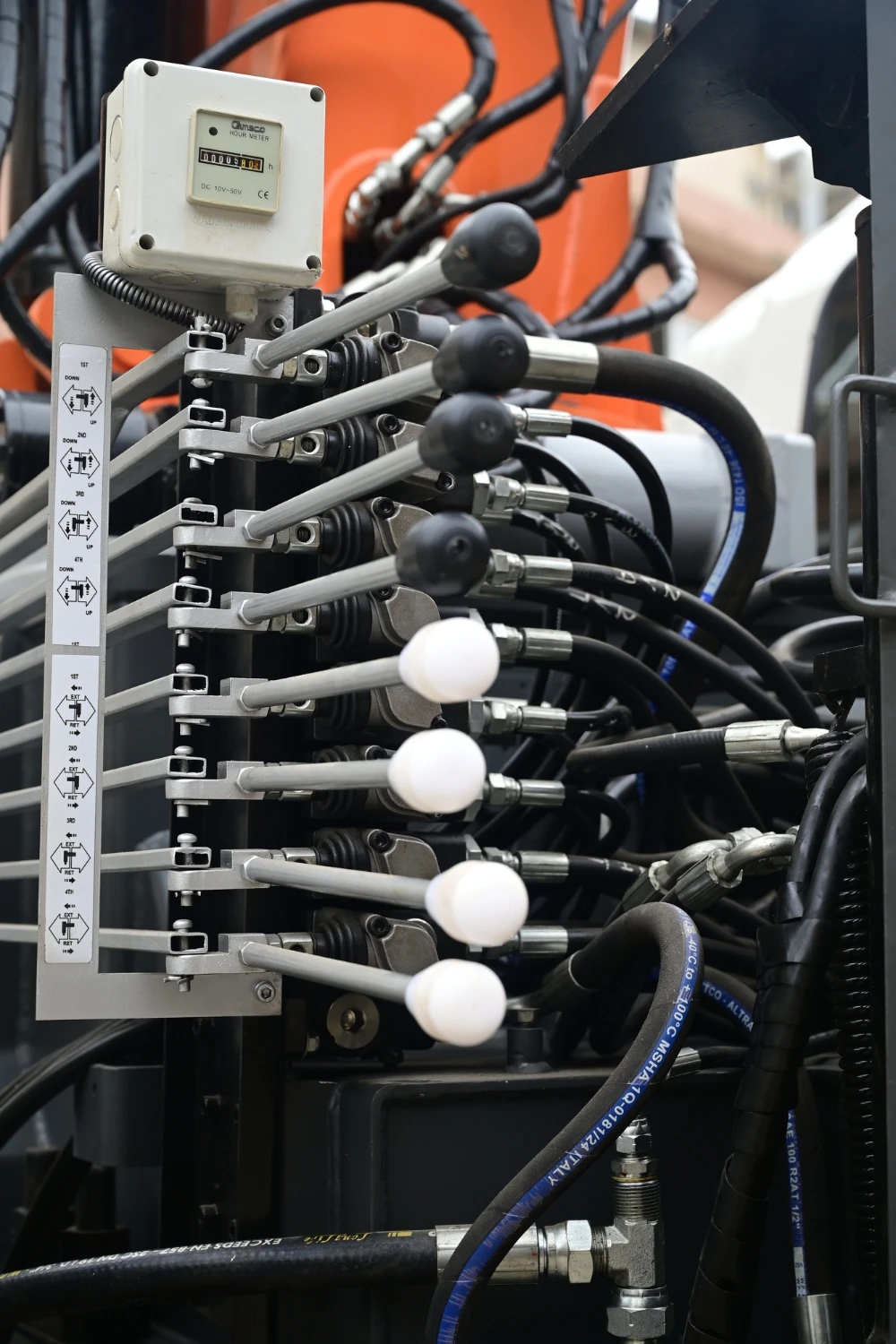

The MTC Series provides telescopic lorry cranes for various industries. Operators maneuver and control the crane during lifting tasks using side levers. The boom features a hexagonal shape that contributes to the stability and strength of the crane. The equipment allows angle adjustments from 0 to 80 degrees to suit different work environments.
The TC-6006 offers a maximum lifting capacity of 6 tons at 2.4 meters. It mounts on trucks with a payload capacity over 6 tons. This model reaches a maximum lifting height of 18.5 meters and a working radius of 16.2 meters. The boom uses six sections with three cylinders and two wires.
Technical Highlights
Hydraulic Winch
The winch features a spur gear reduction and mechanical brake design.
Wire Ropes
The TC-3004 uses an 8 mm-thick wire rope spanning 80 meters. The TC-5004 uses a 10 mm-thick rope spanning 108 meters. The TC-6006 uses a 10 mm-thick rope spanning 120 meters.
Outriggers

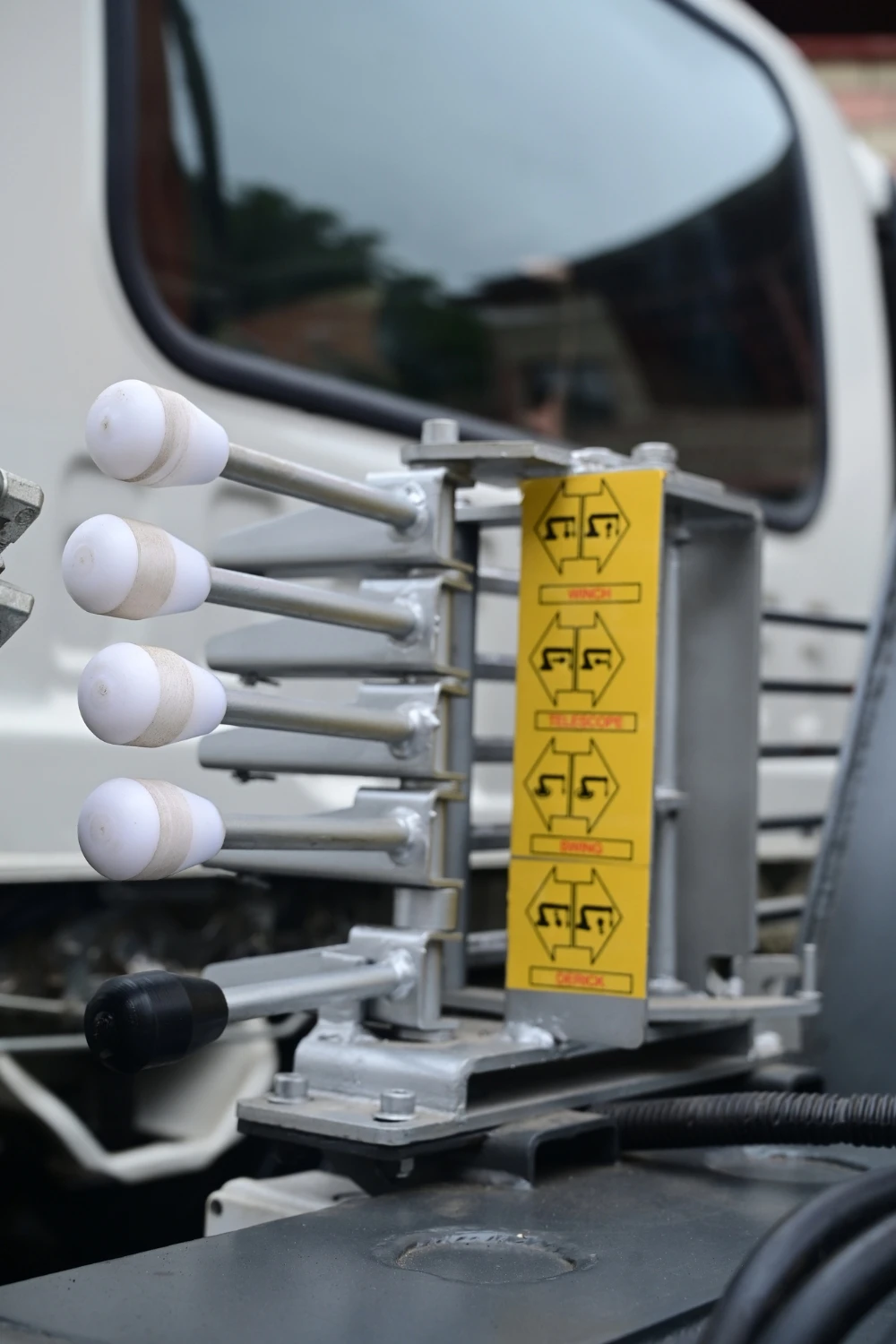

The cranes use hydraulic outriggers for vertical and horizontal positioning. The system includes two main and two rear outriggers.
Safety Systems

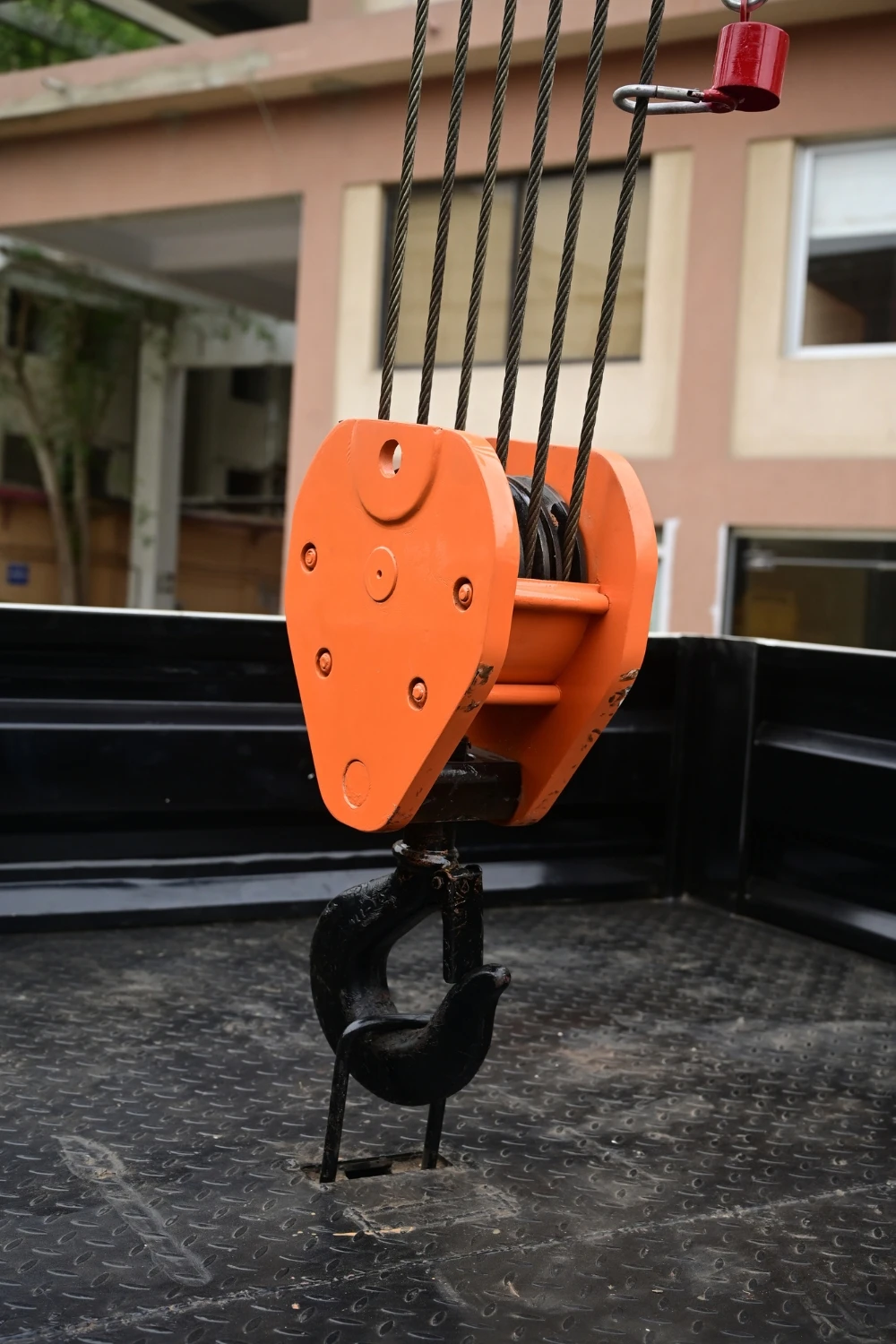

Built-in safety devices include a pressure relief valve, counterbalance valve, and a pilot-operated check valve. The winch includes a hook safety latch to prevent accidental disengagement.
Alarm Devices
Operators receive alerts from a warning alarm, an overwinding alarm, and an emergency stop switch.
Oil Tank Capacity
Capacities vary by model: 50 liters for the TC-3004, 160 liters for the TC-5004, and 95 liters for the TC-6006.
