Industrial Pumps
UT Series Pumps

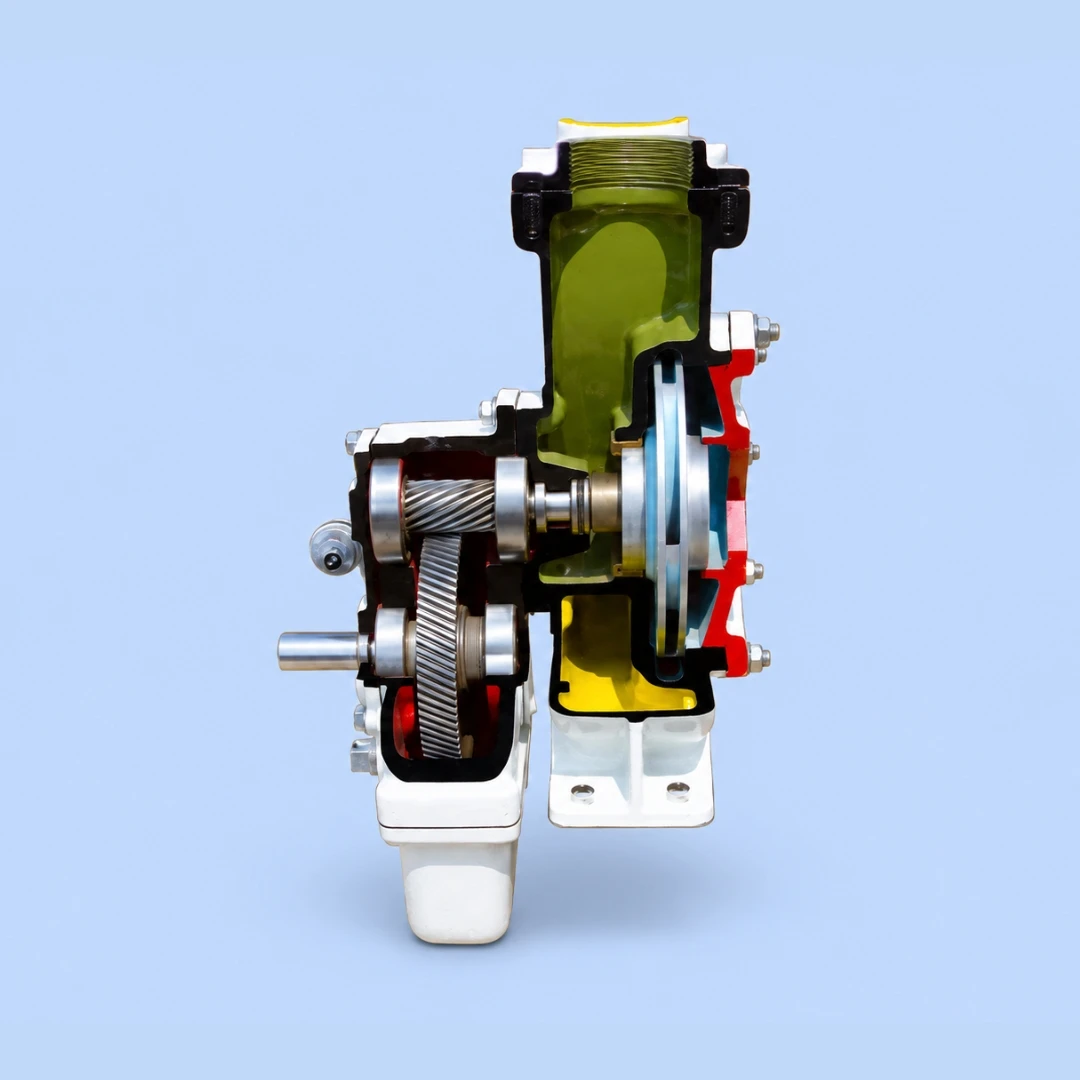

MERAJ builds the UT Series gear-reducer, power take-off (PTO) pumps for clean liquid handling. These units transfer fluids without large solids. They serve diverse applications ranging from quarry dust control to aircraft fuel supply.
Industrial Pumping Excellence
Compact Installation

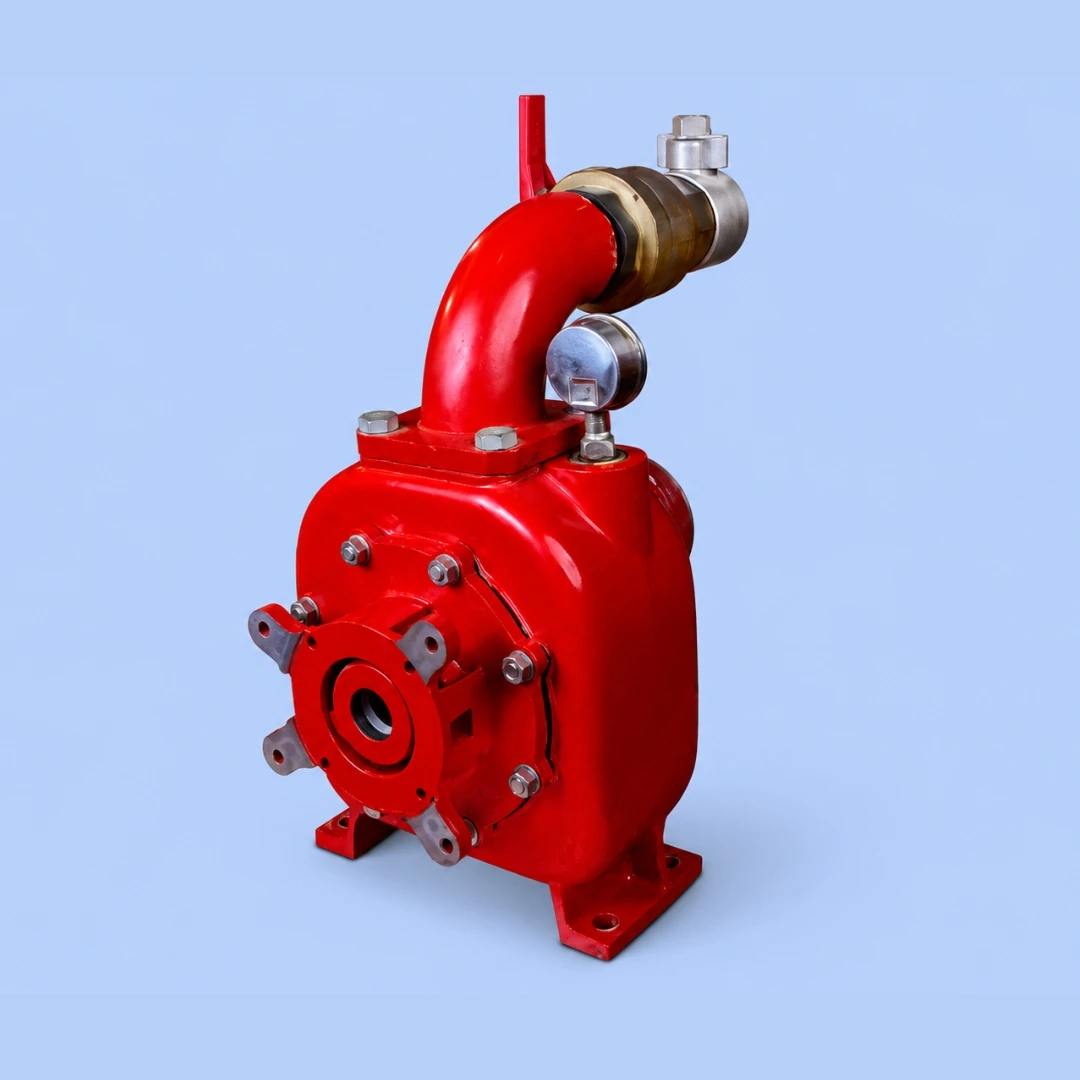

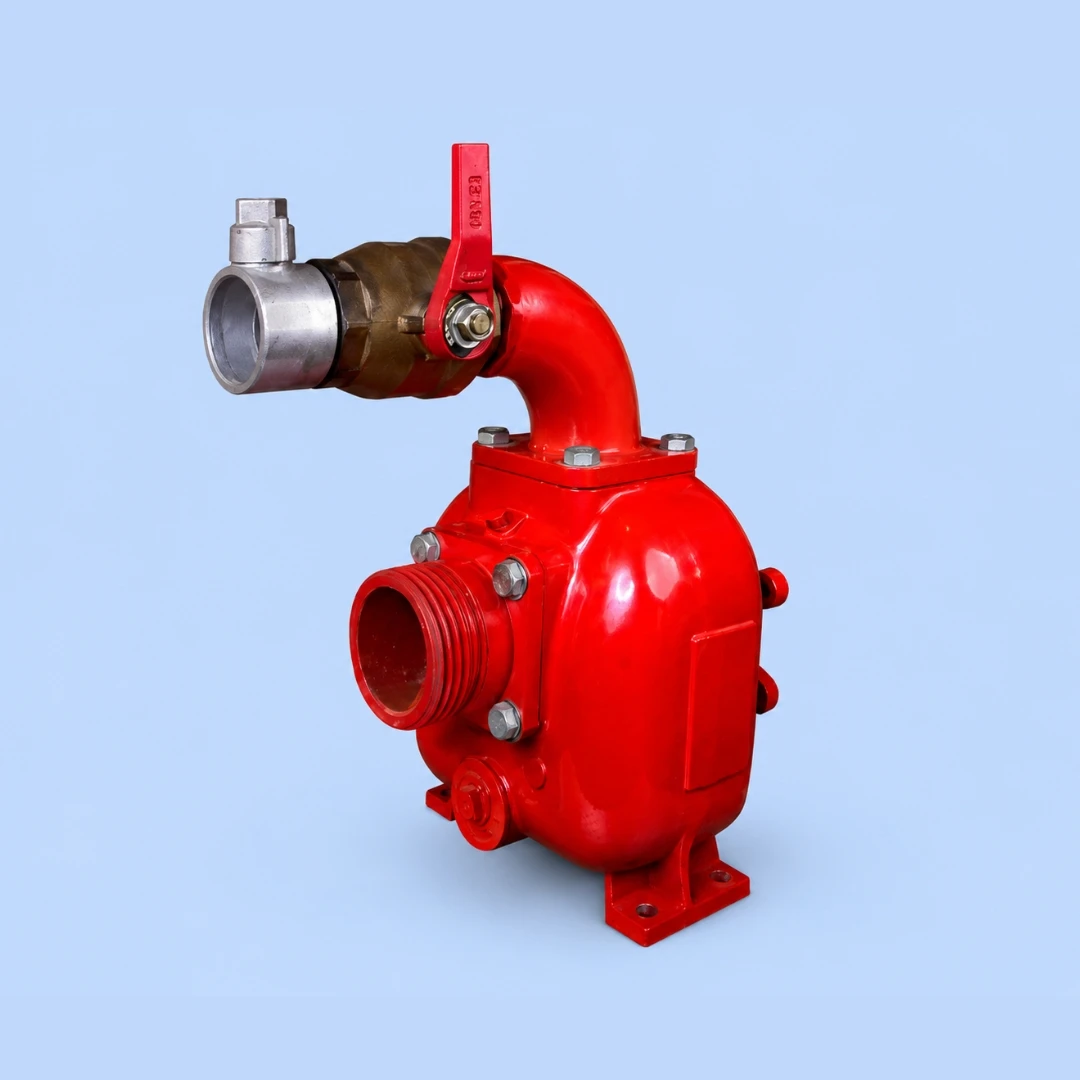

The UT Series features a rugged, lightweight, and compact design. Mechanics install these pumps in the unused space between the cross members of a chassis frame. This setup optimizes space on refueling and water transfer vehicles.
Petroleum and Auxiliary Operations
These pumps handle fuel oil, gasoline, and other petroleum-based products efficiently. The economical design supports multiple unit installations. They function effectively as auxiliary pumps for fire trucks, sewerage cleaning trucks, and water pumpers.
Flexible Drive Options
The standard configuration uses a power take-off (PTO) or auxiliary drive connection. If those connections are unsuitable, operators can adapt the UT Series for DC or hydraulic motor drives.
Features
Broad Applications
Manages dewatering, jet fuel and diesel fueling, wastewater, and firefighting tasks.
Material Selection
Features a brass or aluminum alloy impeller enclosed in a ductile iron or aluminum alloy body.
Drive Compatibility
Operates with PTO, hydraulic drives, and electric drives at variable speeds.
.webp)
.webp)
UT Series - Technical Data
| Suction | Discharge | Max. Head (ft.) | Max. Flow (GPM) | Max. RPM | Power (HP) | Net Weight (LB/KG) | Impeller |
|---|---|---|---|---|---|---|---|
| 2" (50 x 50 mm) | 2" | 350 | 185 | 900 | 20 | 46.3 lbs / 21 kg | 6.5" |
| 3" (75 x 75 mm) | 3" | 200 | 400 | 3450 | 30 | 103.62 lbs / 47 kg | 7.25" |
